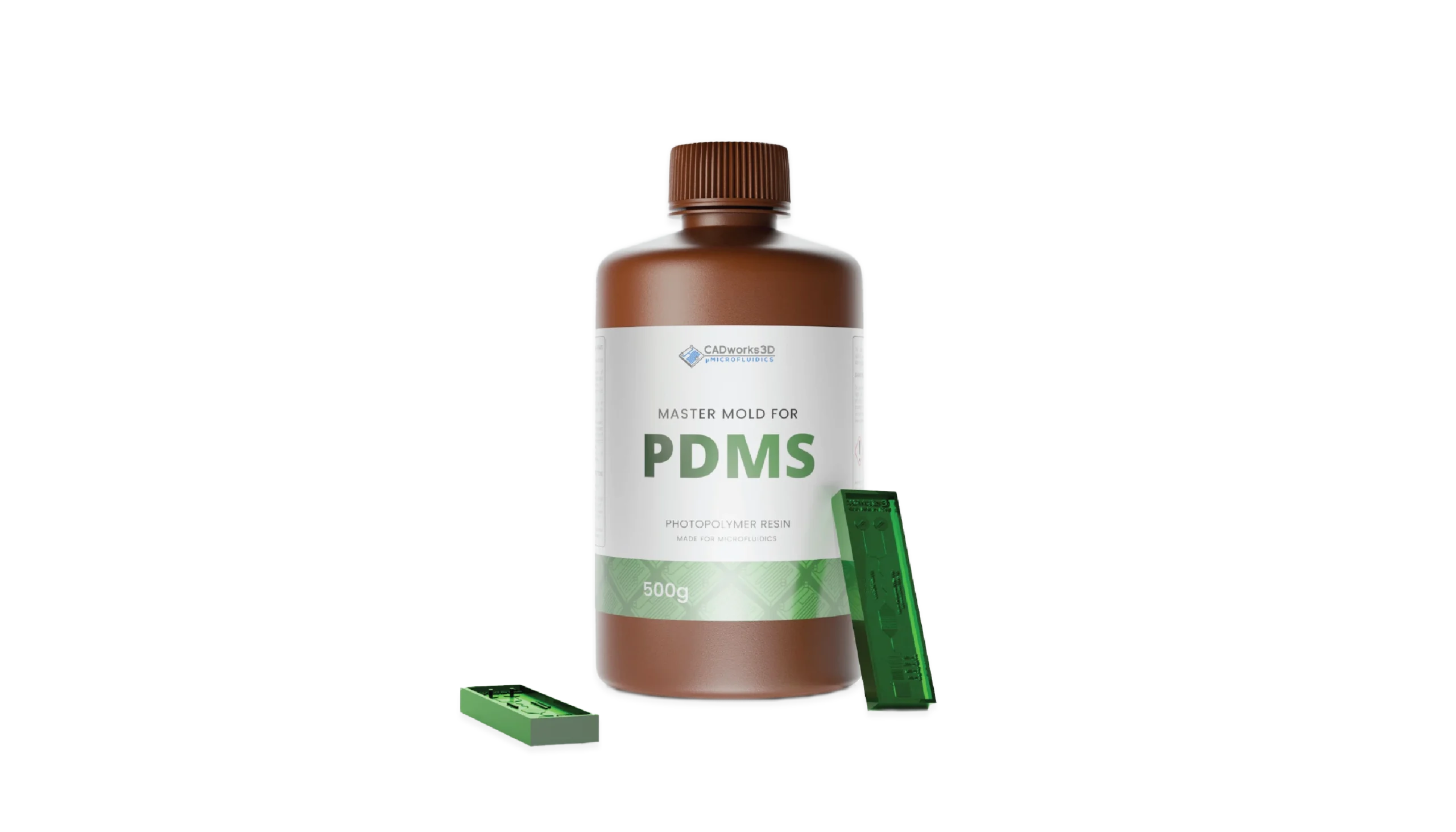

Master Mold for PDMS

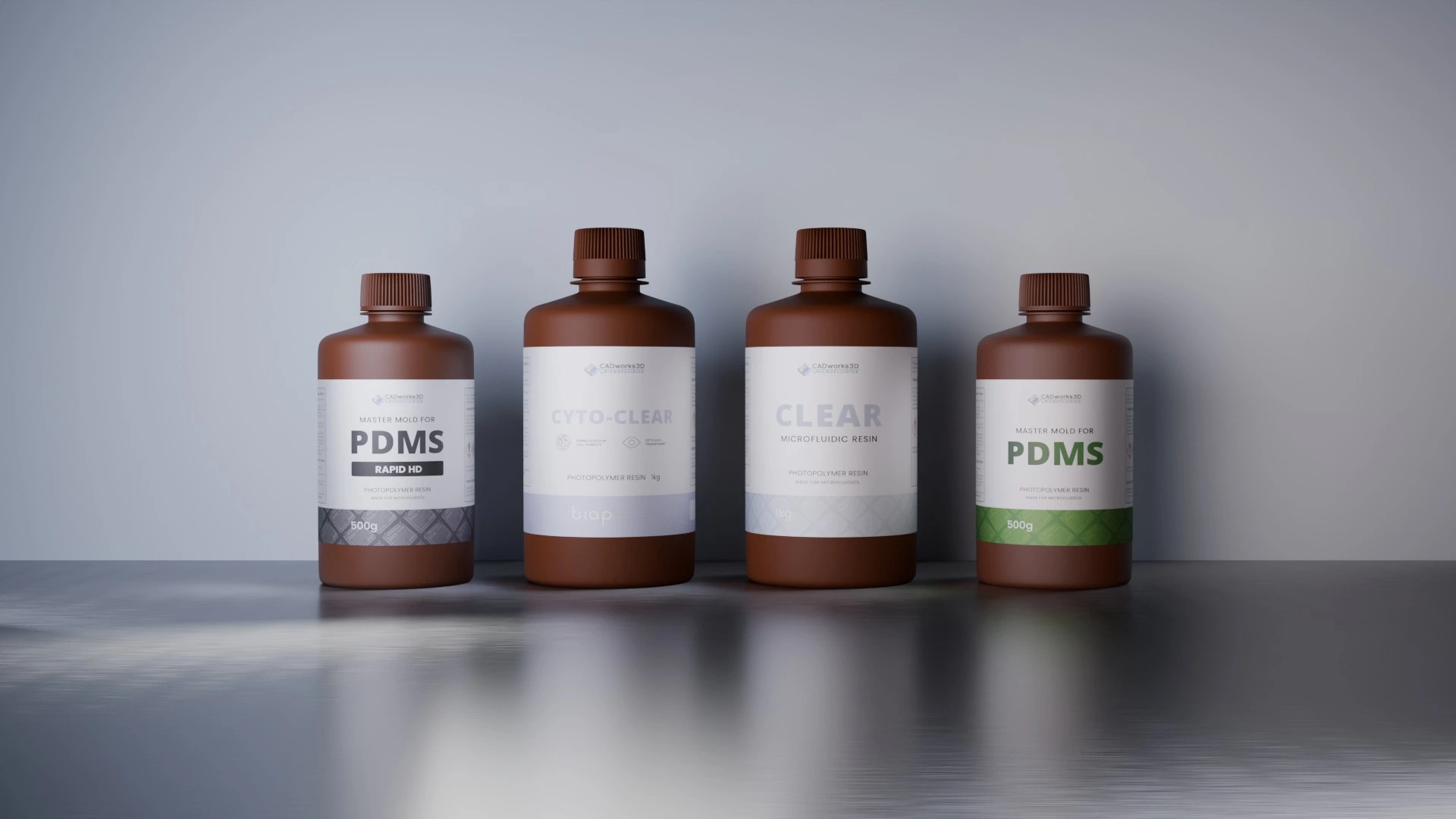

PHOTOPOLYMER RESIN

THE CAPABILITIES ARE UNIQUELY ENABLED BY THE PROFLUIDICS 285D AND ARE FULLY COMPATIBLE ONLY WITH THIS SYSTEM.

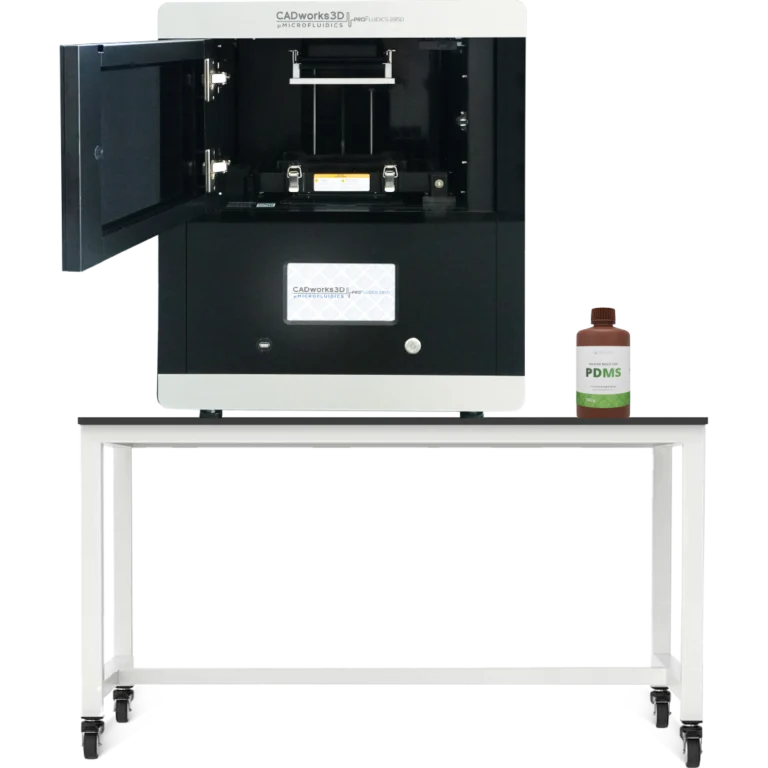

4 Simple Steps to Create Master Molds At Benchside

STEP 01 | CAD
Create your master mold using CAD software

NO CAD Experience?
We have a solution.
➞Try Flui’Device

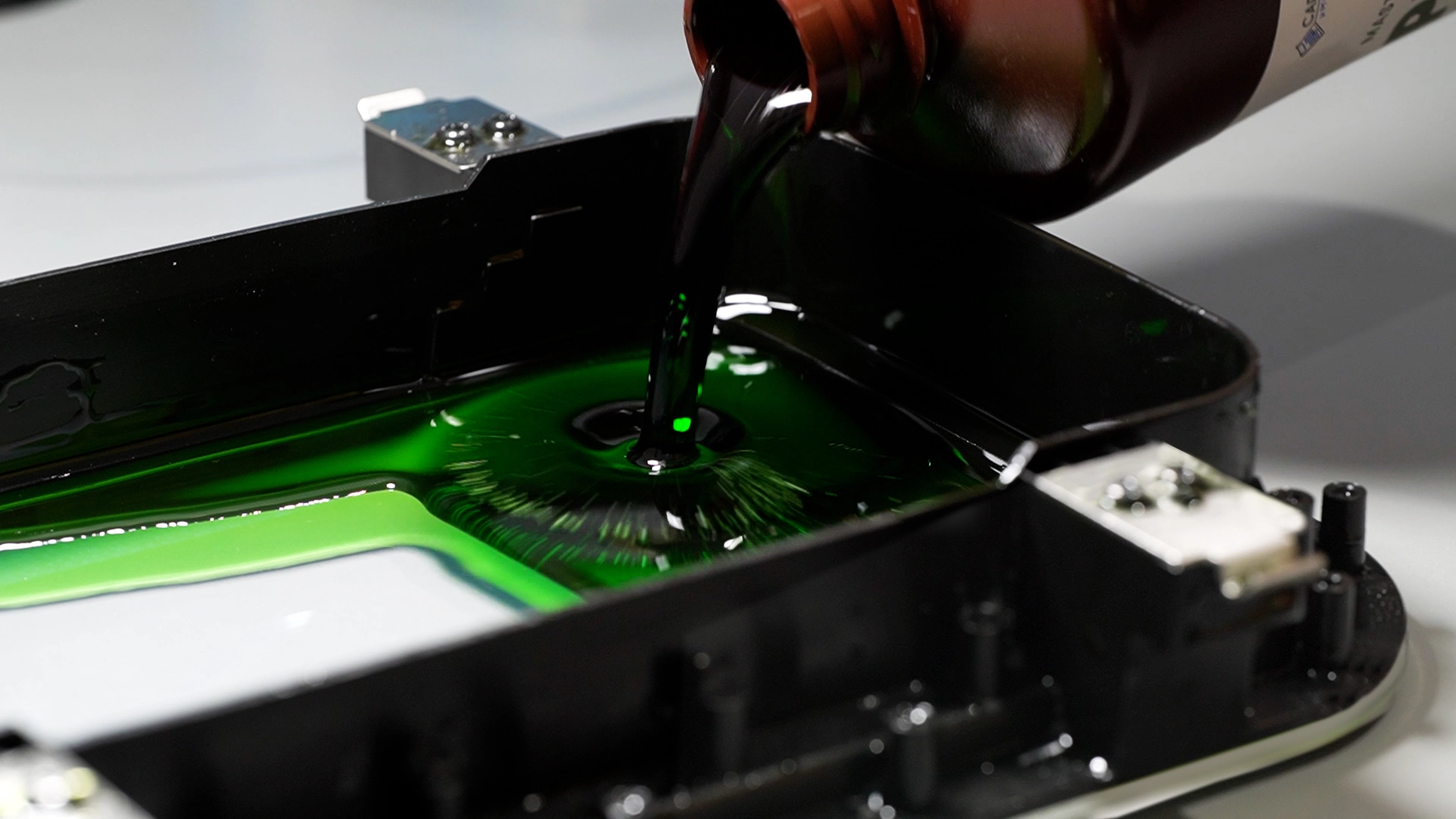

STEP 02 | 3D PRINT
Print the master molds using our Exclusive 3D materials and 3D printer

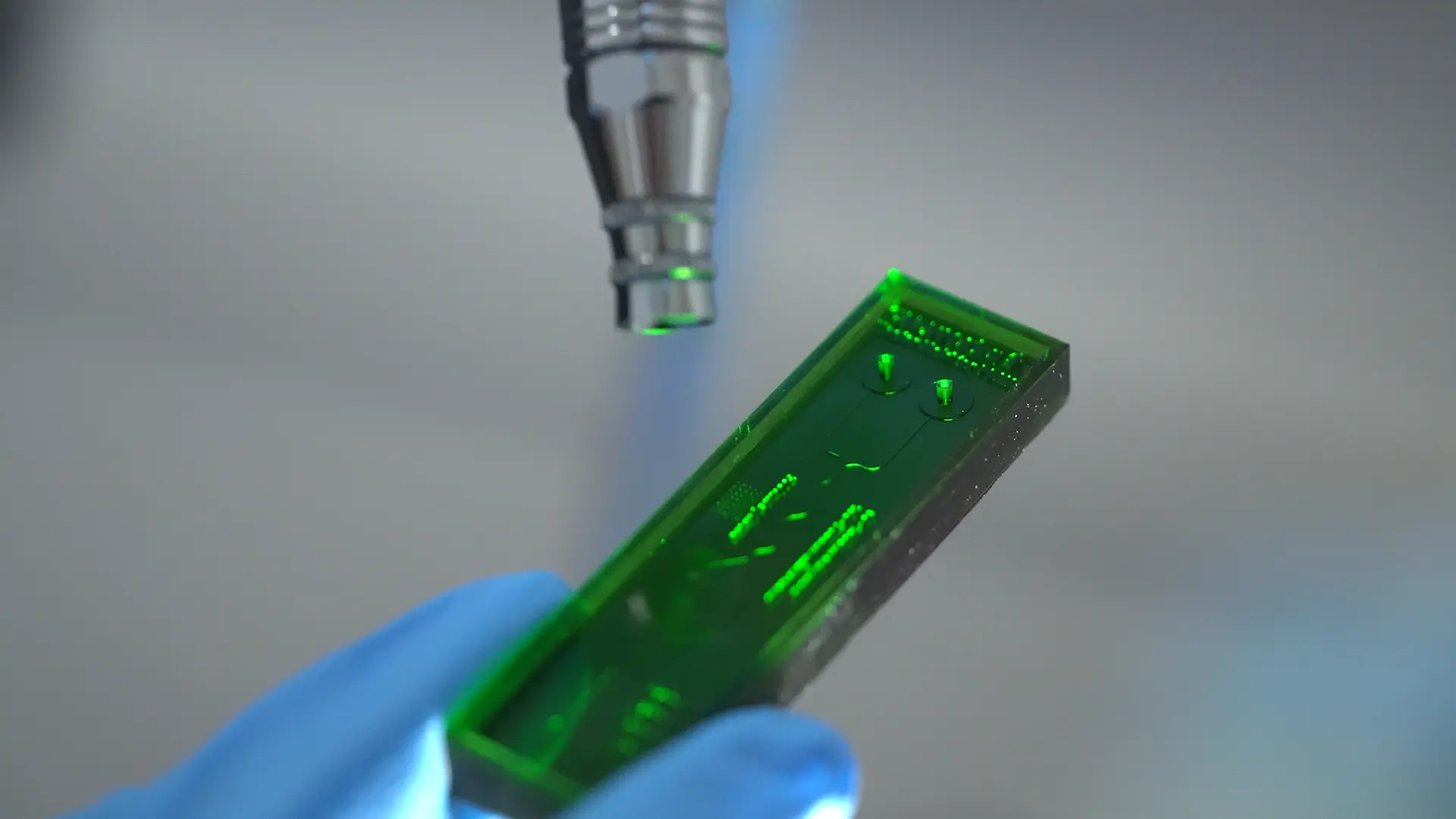

STEP 03 | CLEAN
Quick cleaning and curing the master molds

STEP 04 | READY TO USE
Pour, cure, and peel off the PDMS from the master molds to start your research

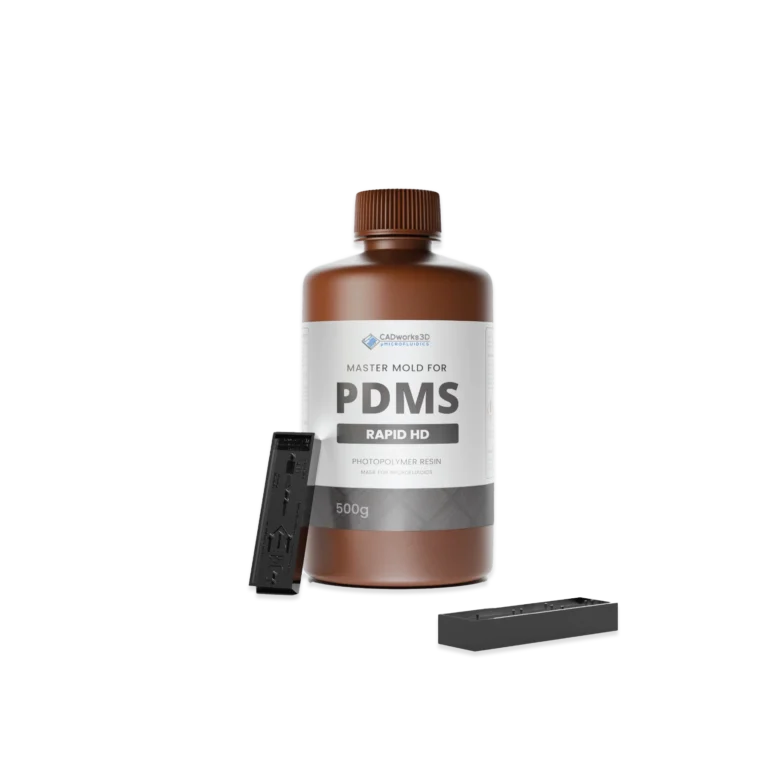

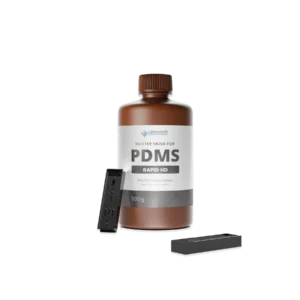

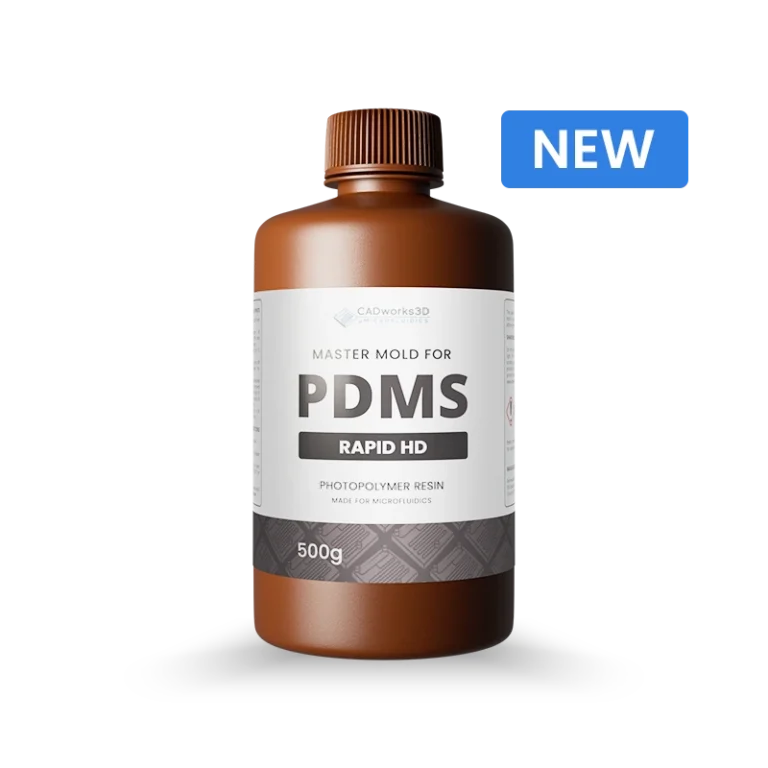

Master Mold for PDMS - Rapid HD

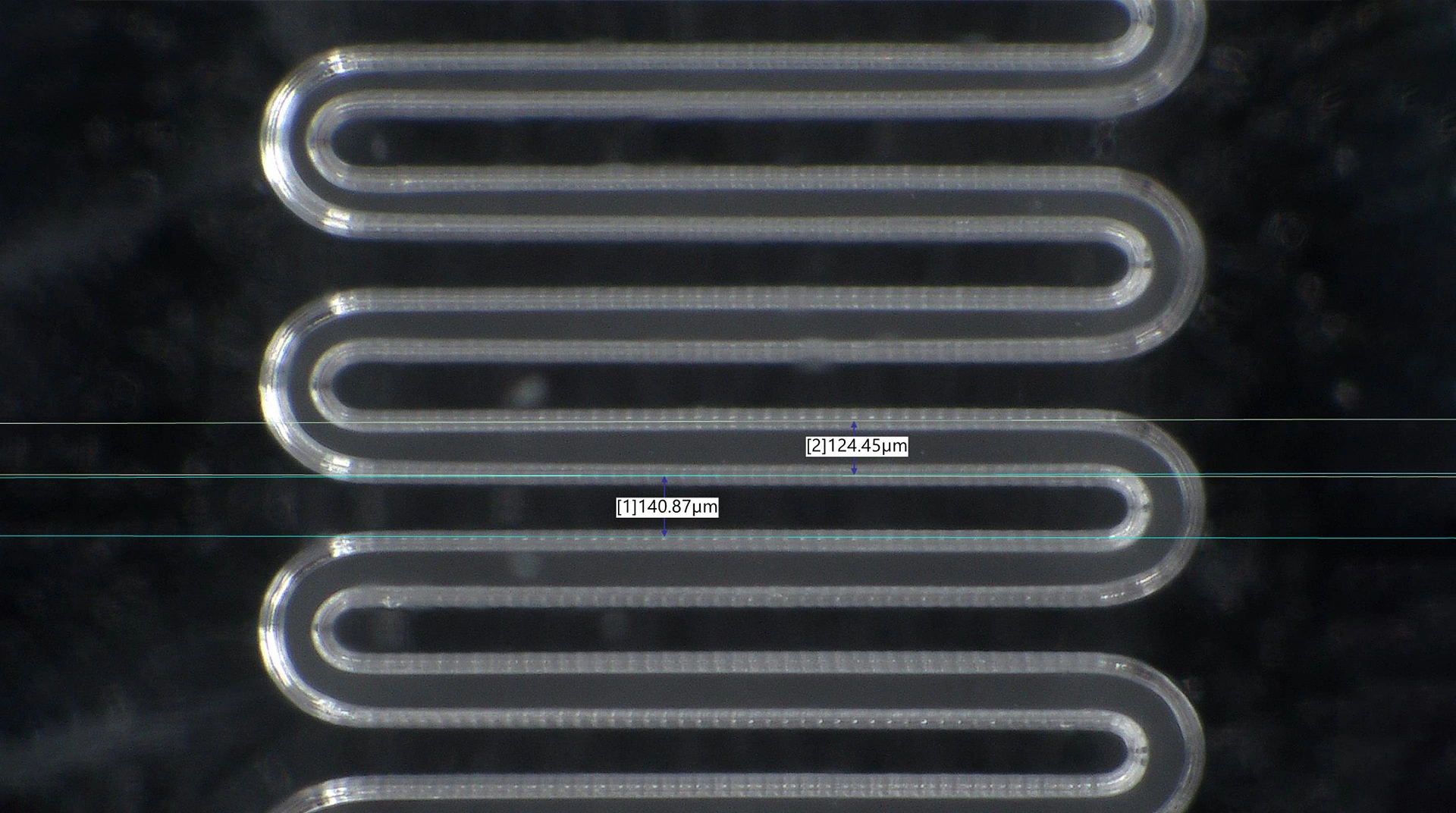

Print 50µm Open Channels

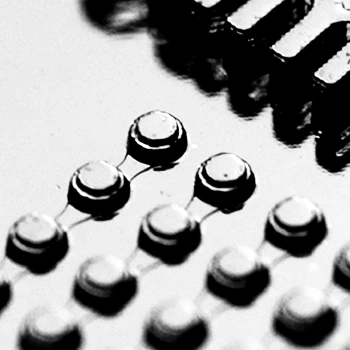

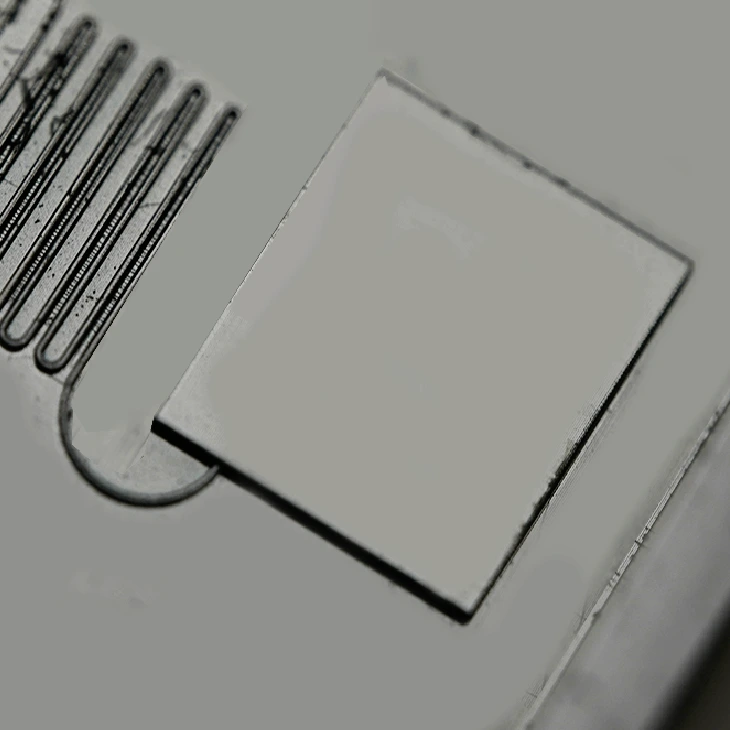

Confidently print master molds with precise channels as fine as 50µm in the XY. Push the limits in design by integrating macro and micro-sized features onto one mold; or take advantage of vertical space by creating multi-depth features with ease.

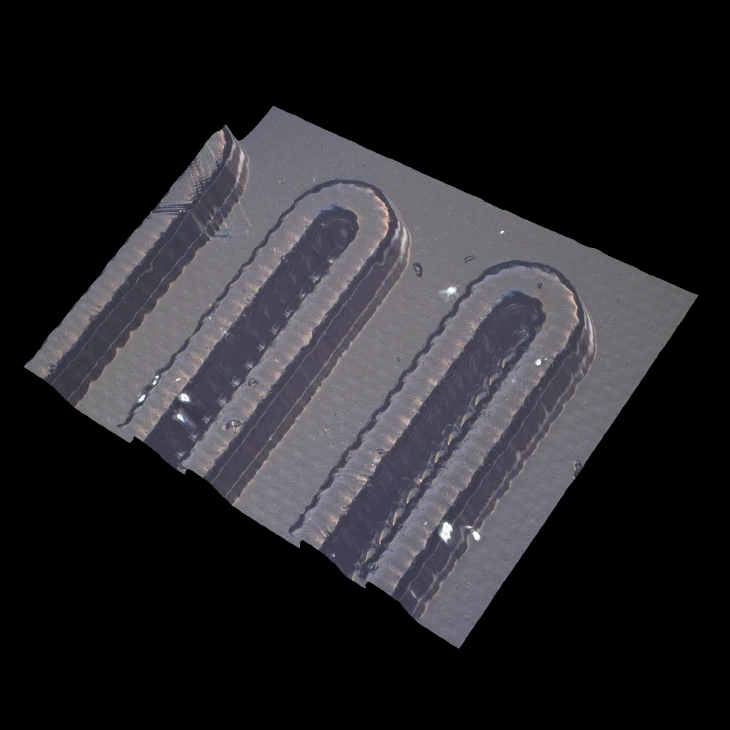

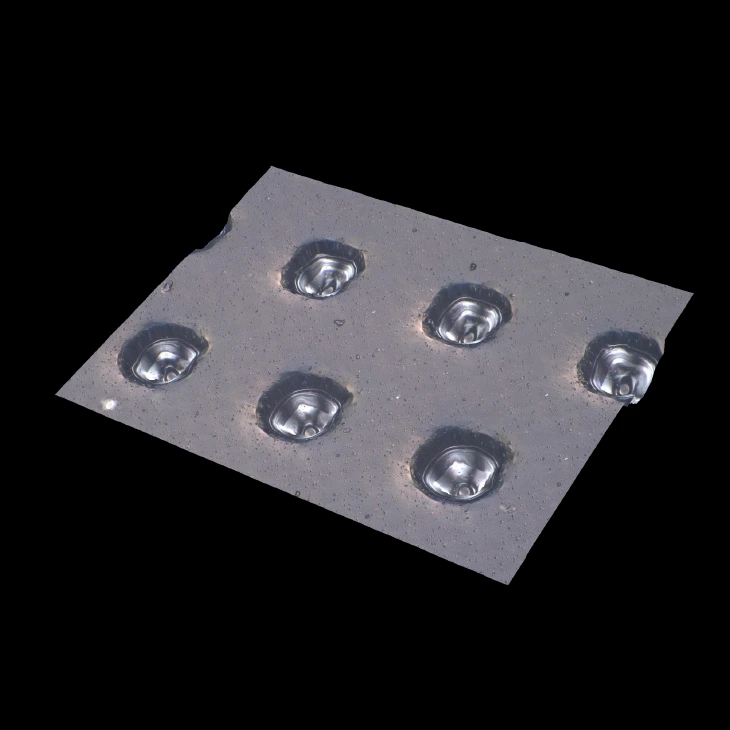

0.18µm Ra Value Master Molds

Master molds exhibit an exceptional surface finish with a 0.18µm Ra value. This reflects in an optically clear PDMS device, ensures proper bonding to the chosen substrate, and preventing leaking during testing.

Non-Cytotoxic PDMS Devices

When casting PDMS onto the printed master molds, no cytotoxic residual material is transferred, making the Master Mold for PDMS resin biocompatible and suitable for cell culture applications

Device Durability Reuse Master Molds

Printed master molds are able to withstand the temperatures of a conventional lab oven without the loss of printed features. A single master mold can be used several times to cast PDMS devices up to 500 times with the appropriate care.

1-Day Workflow Fast Iterations

A typical master mold can be printed in 1-3 hours (size dependent). Post-print processing is as simple as cleaning the part in isopropyl alcohol and curing for 40 minutes under a UV light. PDMS can be casted directly onto the master mold without any salinization or release agents, and cured in a lab oven at 70°C / 158°F for 3 hours.

Swipe to Explore

Empower Research Worldwide

2023

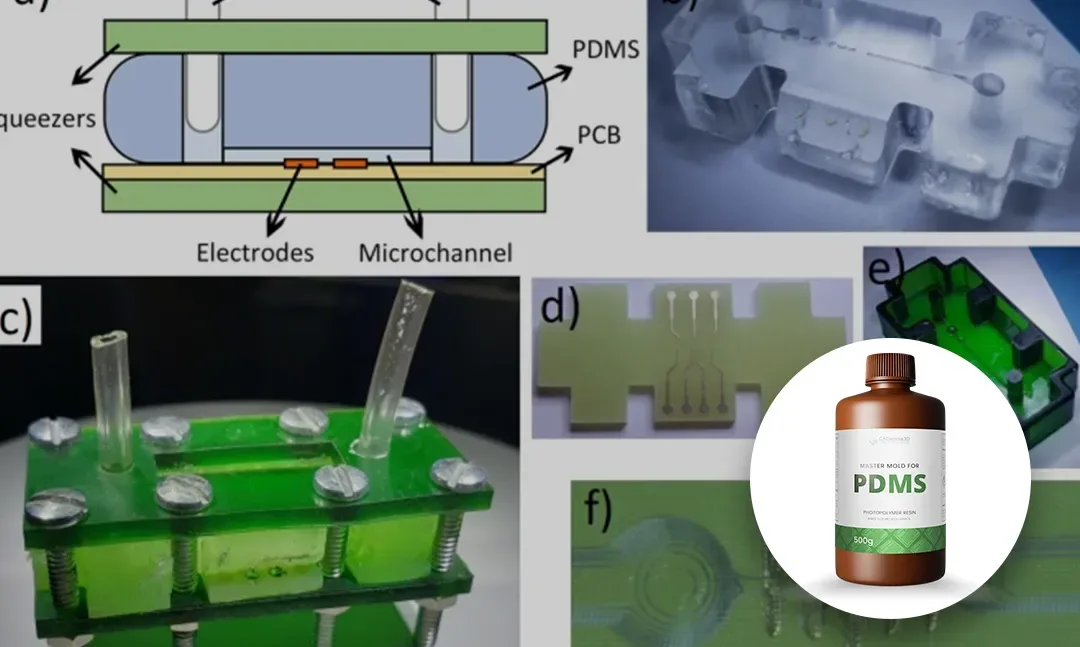

Portable impedance‑sensing device for microorganism characterization in the field

2023

Room temperature roll-to-roll additive manufacturing of polydimethylsiloxane-based centrifugal microfluidic device for on-site isolation of ribonucleic acid from whole blood

2021

Design and characterization of a 3D-printed staggered herringbone mixer

2020

Ultrasensitive and rapid quantification of rare tumorigenic stem cells in hPSC-derived cardiomyocyte populations|

Interested in this 3D Material?

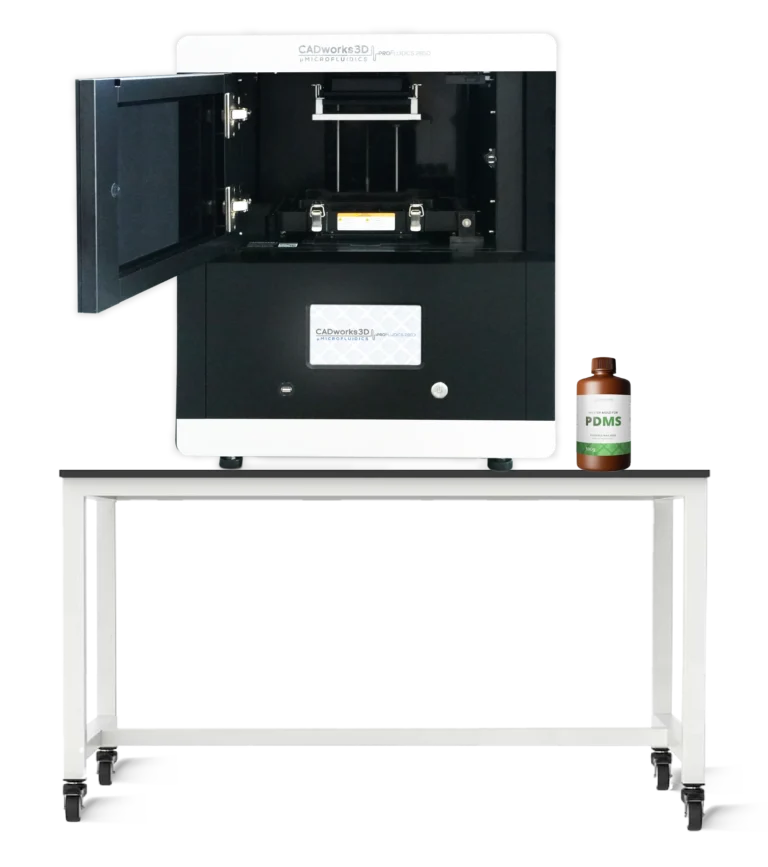

The capabilities of the Master Mold for PDMS Photopolymer Resin are uniquely enabled by the ProFluidics 285d and are fully compatible only with this system.

Discover the best solutions for your research.

Our specialists will answer all your questions.

FREE SAMPLE PACK

Find out if our solution meets your needs by examining the printing results first hand

RESEARCH ARTICLES

Peruse a collection of peer-reviewed articles from users of our 3D printing solution

RESEARCH HIGHLIGHTS

Read condensed summaries highlighting how users utilize our 3D printer and materials
