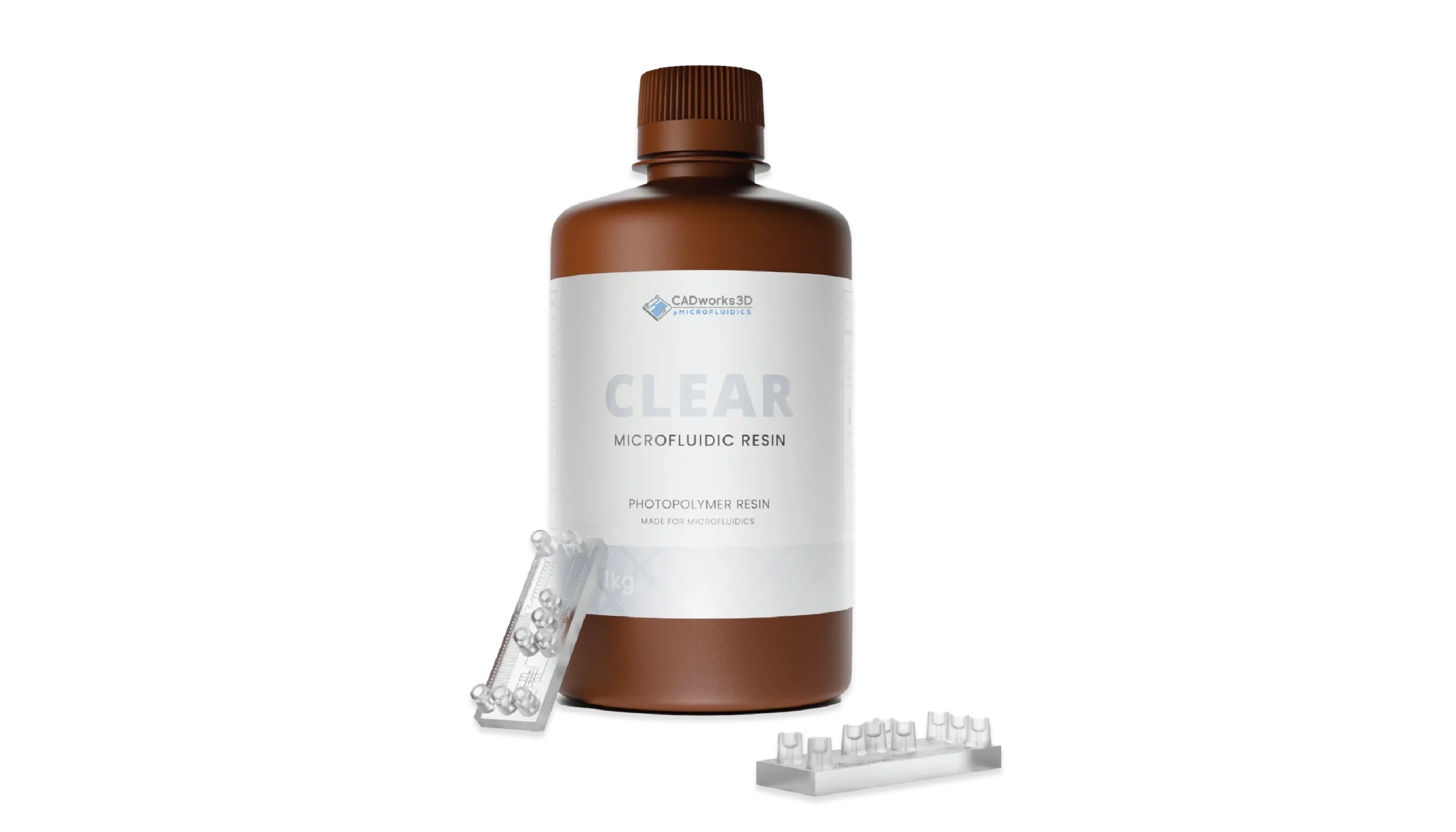

Clear Microfluidic Resin

PHOTOPOLYMER RESIN

THE CAPABILITIES ARE UNIQUELY ENABLED BY THE PROFLUIDICS 285D AND ARE FULLY COMPATIBLE ONLY WITH THIS SYSTEM.

Achievable Features

Serpentine

XY | 200 μm

Z | 350 μm

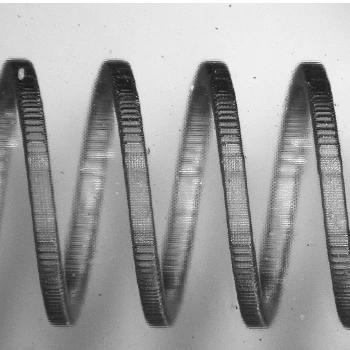

Helix Coil

XYZ | 250 μm

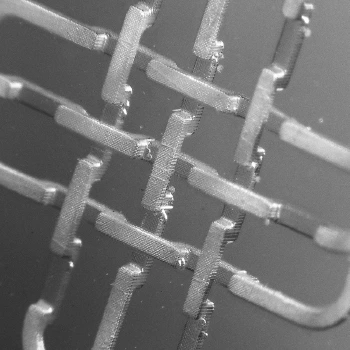

Weave

XYZ | 200 μm

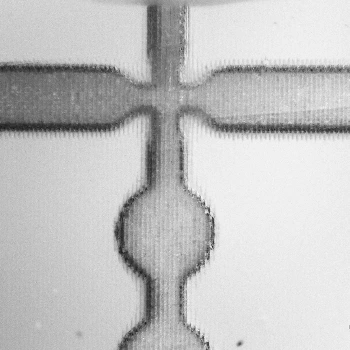

Cross Junction

XY | 80 μm

Z | 250 μm

Made For Microfluidics

Clear Microfluidic Resin is a high-performance photopolymer formulated for 3D printing transparent encapsulated devices and functional microfluidic devices.

Optimized for use in biomedical, analytical, and diagnostic applications, Clear Microfluidic Resin streamlines device development and supports high-precision, cost-effective microfabrication workflows.

Made For Microfluidics

Clear Microfluidic Resin is a high-performance photopolymer formulated for 3D printing transparent encapsulated devices and functional microfluidic devices.

Optimized for use in biomedical, analytical, and diagnostic applications, Clear Microfluidic Resin streamlines device development and supports high-precision, cost-effective microfabrication workflows.

4 Simple Steps

Create master molds at Benchside in 1 day.

01 – CAD

Create your monolithic devices using CAD software.

No CAD Experience? We have a solution.

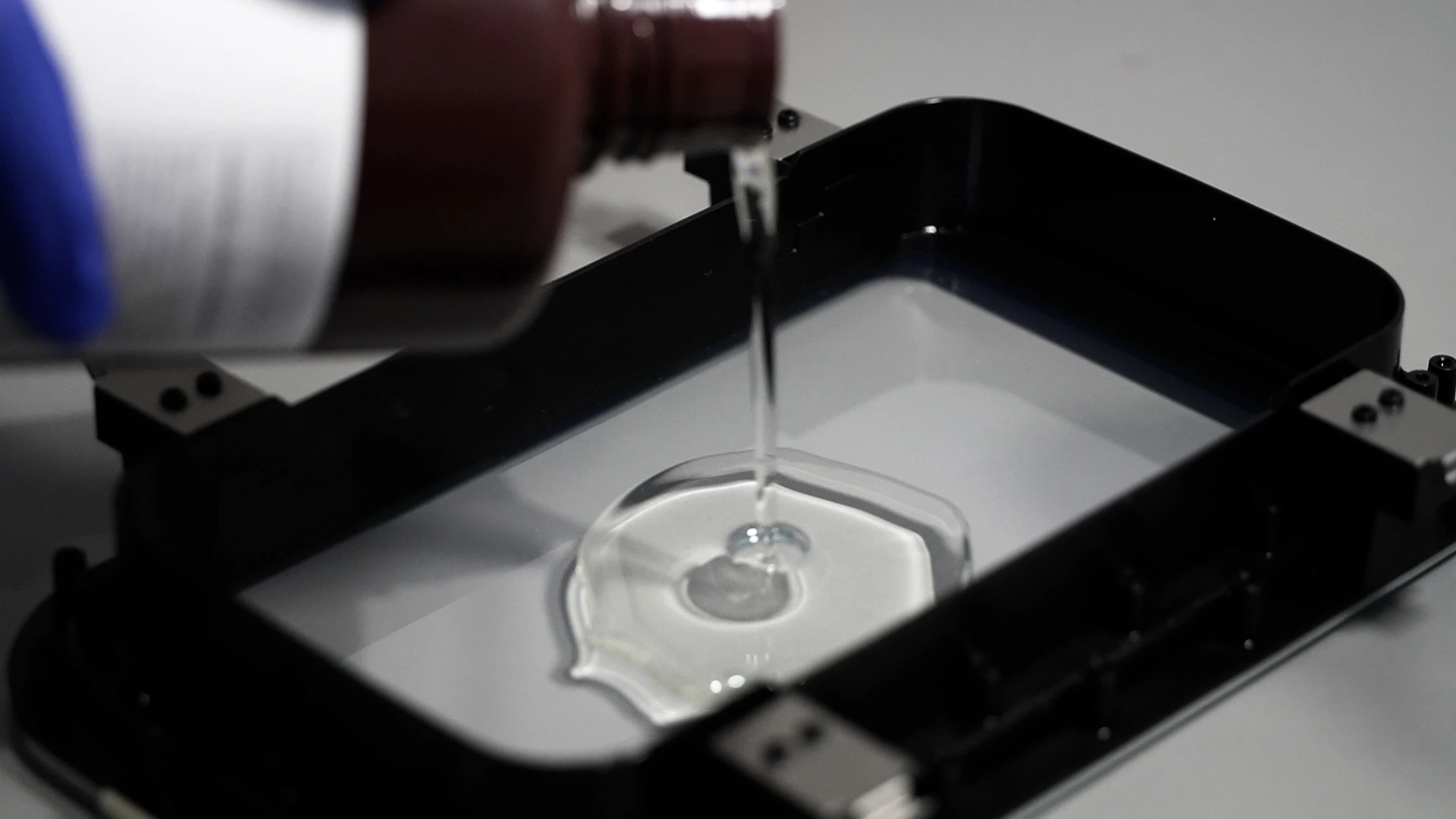

02 – Pour

Print the clear monolithic devices using our exclusive 3D materials and 3D printer

03 – Print

Print your clear monolithic devices with confidence, using the Clear Microfluidic Resin and a CADworks3D printer.

04 – Clean

Post-processing involves a quick and easy cleaning and curing of the monolithic devices

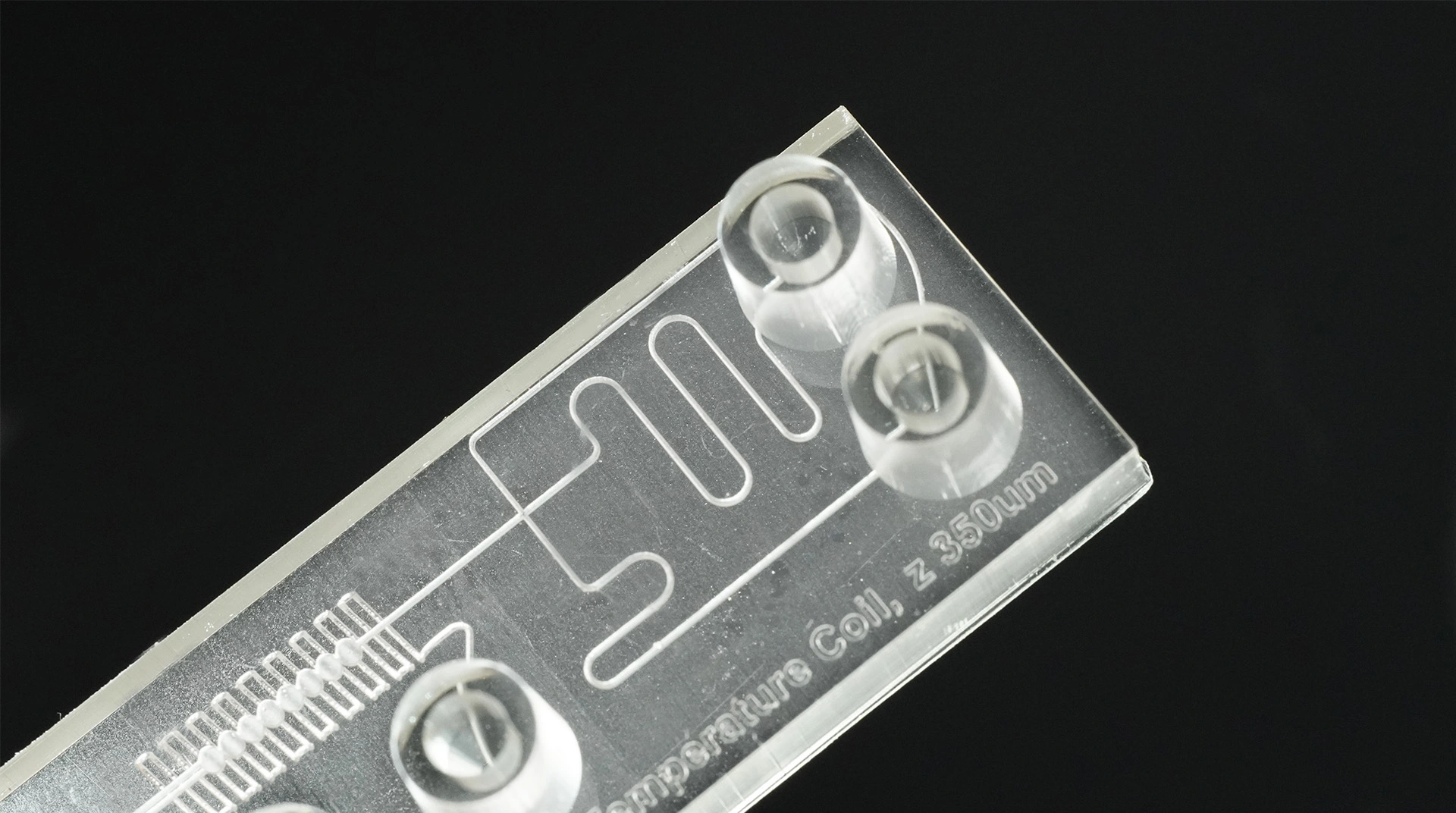

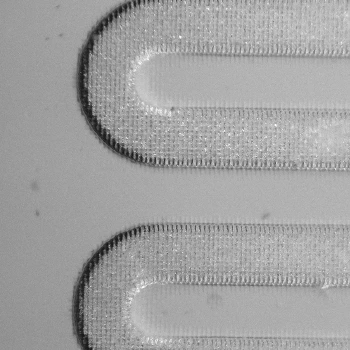

Print 80µm Encapsulated Channels
The Clear Microfluidic Resin was formulated to have a low viscosity and allow for the easy drainage of enclosed channels during printing and cleaning. This enables precise and high resolution printing of micro-sized features.
Optical Transparency
Printed devices do not need any additionally processes to achieve optical transparency. Sanding, polishing or coatings are not necessary.
Inert Under Fluorescent Light
Devices are inert under fluorescent light, making it viable for dominant analysis techniques using fluorescent markers. The transparency of the device allows for easy evaluations.

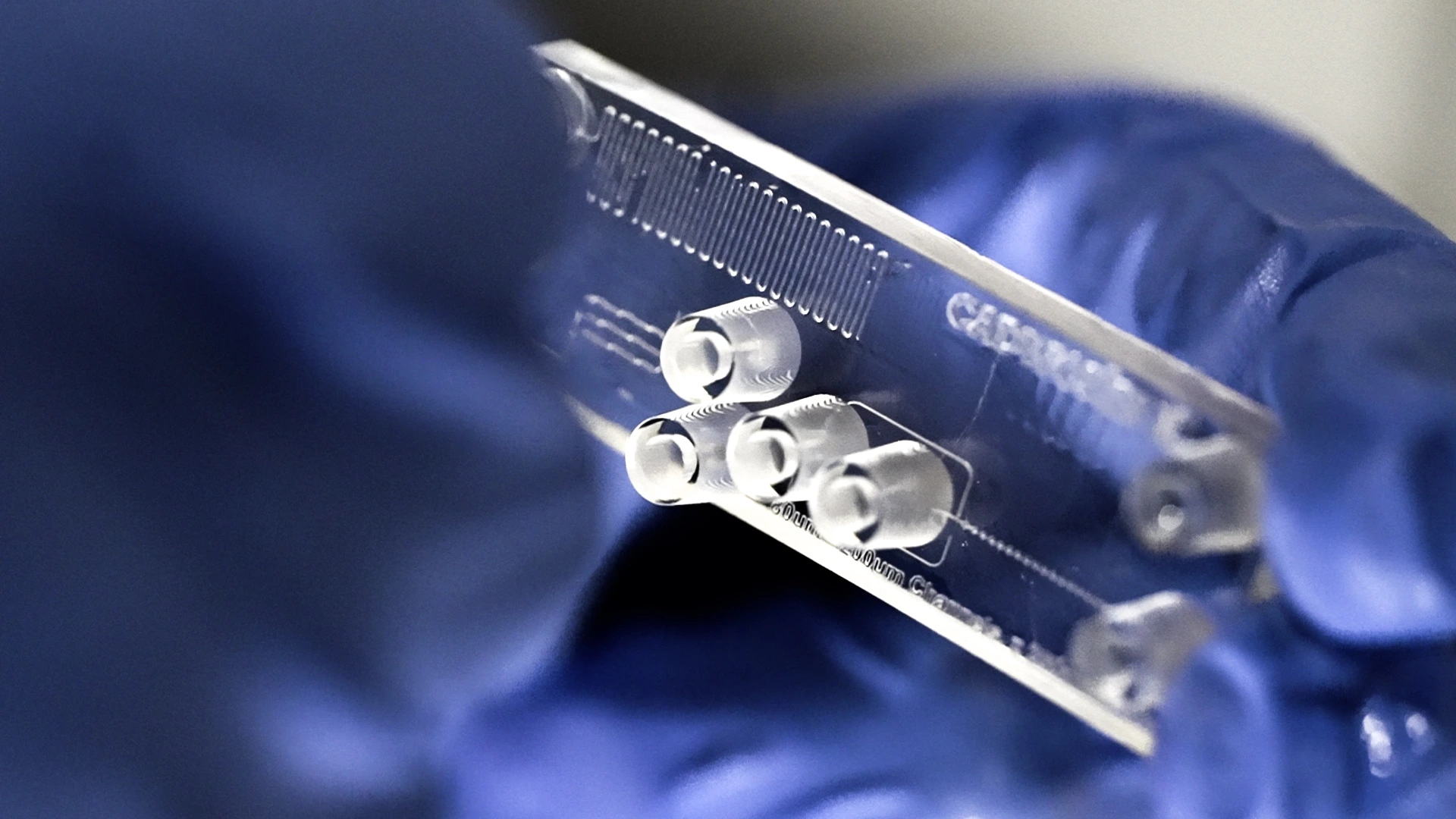

1-Day Workflow Easy Fabrication
A standard clear microfluidic device can be printed in 1-3 hours (size dependent). Post-print processing is as simple as cleaning the part in isopropyl alcohol and curing under a UV light. After which, the device is ready to use and test.

Swipe to Explore

SUPPORT OVER 200 UNIVERSITIES, RESEARCH INSTITUTES, AND LABORATORIES.

Empower Research Worldwide

2023

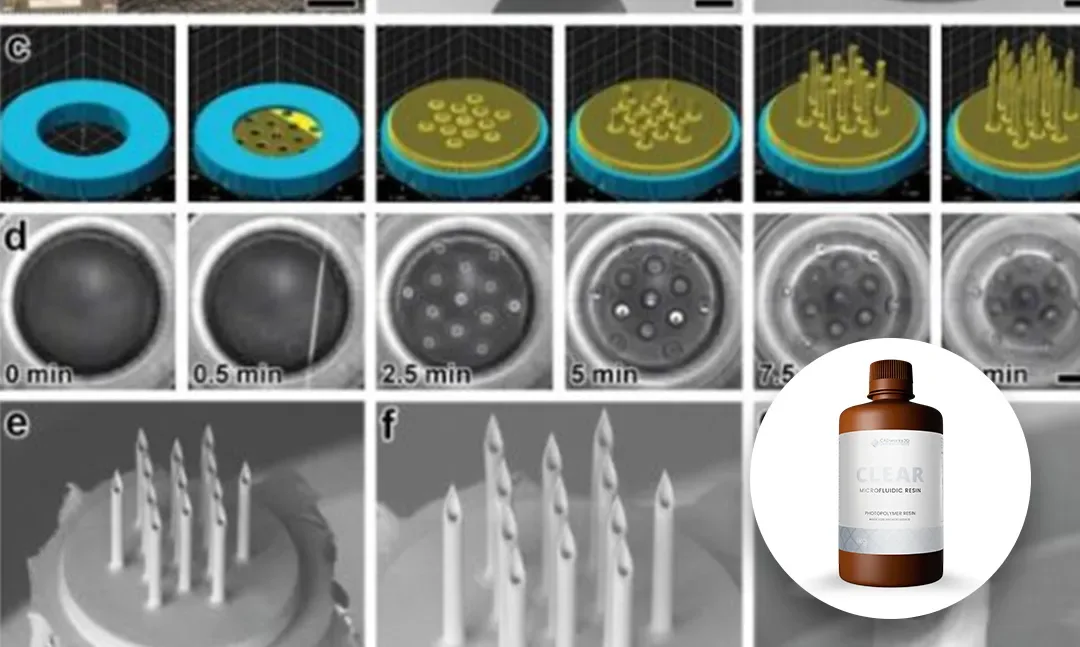

3D‑Printed Microinjection Needle Arrays via a Hybrid DLP‑Direct Laser Writing Strategy

2023

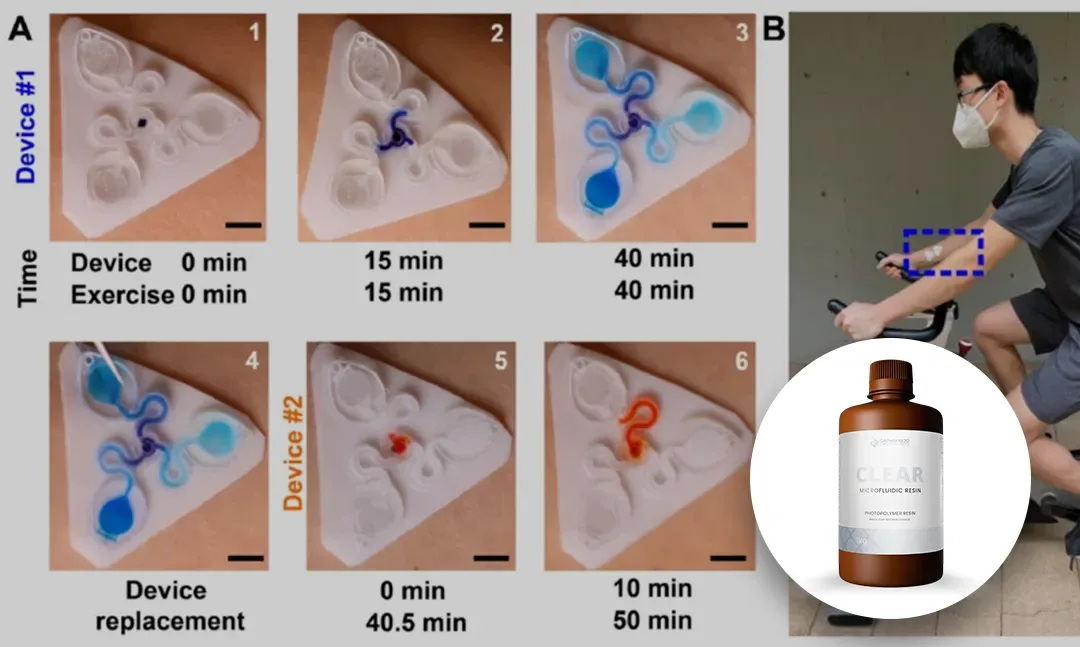

Skin‑interfaced microfluidic systems with spatially engineered 3D fluidics for sweat capture and analysis

2022

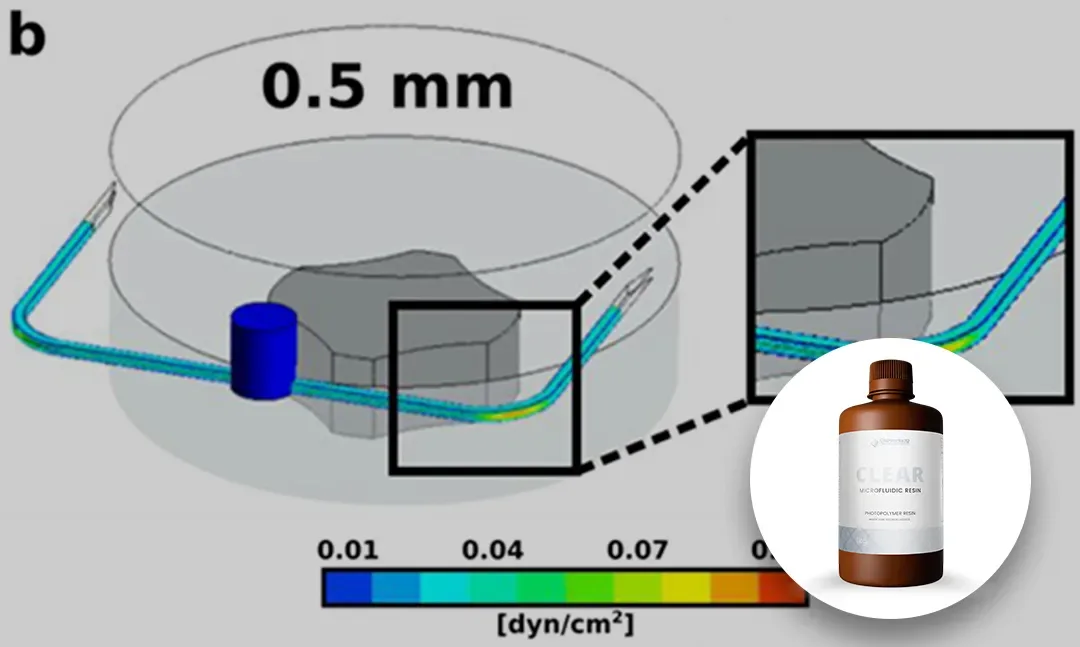

Microscale impeller pump for recirculating flow in organs‑on‑chip and microreactors

2020

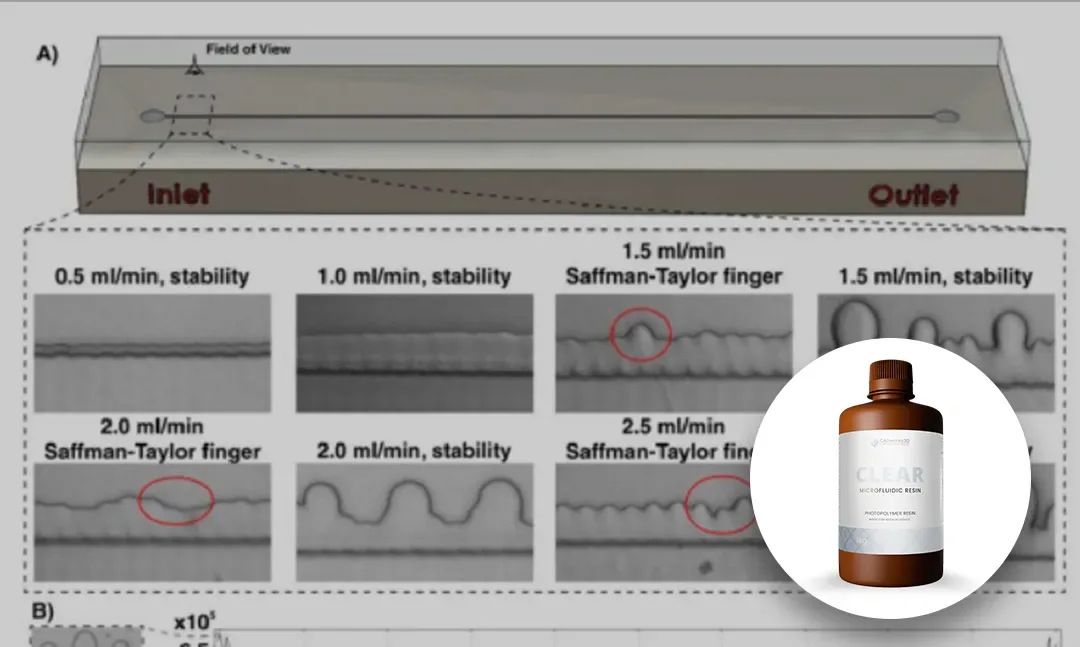

3D Printing of Inertial Microfuidic Devices

Are These Challenges Holding Back Your Research?

Need cell-viable devices for your research?

Cyto-Clear resin is specialized for cell-viability and biocompatibility—optically clear for microscopy and imaging.

Trouble getting the print quality you need?

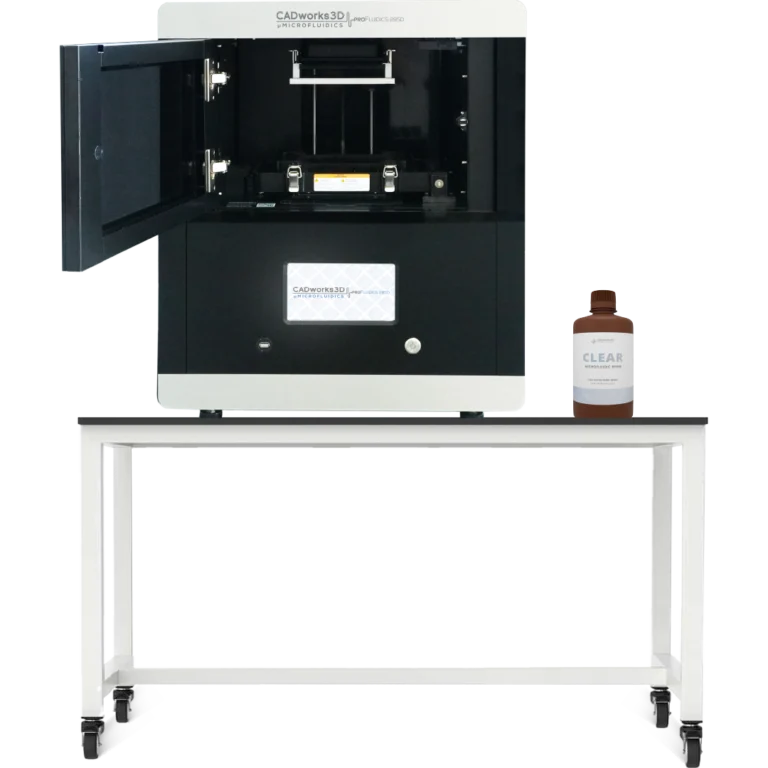

Most commercial 3D printers are built for other industries. The ProFluidics 285D was made for microfluidics to better meet the needs of researchers.

Interested in this Material?

The capabilities of Cyto-Clear are uniquely enabled by the ProFluidics 285d and are fully compatible only with this system.

Free Sample Pack

Find out if our solution meets your needs by examining the printing results first hand

Research Article

Peruse a collection of peer-reviewed articles from users of our 3D printing solution

Research Highlights

Read condensed summaries highlighting how users utilize our 3D printer and materials
