The ProFluidics 285D is designed specifically for microfluidics researchers, delivering precision with a dynamic pixel size of 28.5µm, along with exceptional reliability and speed to produce high-quality, functional microfluidic devices.
Build Area
Native XY Pixel
Dynamic Pixel
Wavelength
Z-Layer Resolution
Projector
110x62x120 mm
40 µm
28.5 µm
385 nm
5-500 µm
4 Million Pixels
PROFLUIDICS 285D
PRINTER SPECIFICATIONS
50 x 57 x 59 cm / 56 kg
STANDARD PRINTERS
Unfilled pixel areas
Distinct checkerboard pattern on the printed surface
Rough texture and noise on the printed surface
PROFLUIDICS 285D
Filled pixel areas perfectly
Resolves shape in line with the original design
Significantly reduces texture and noise on the printed surface
50 x 57 x 59 cm / 56 kg

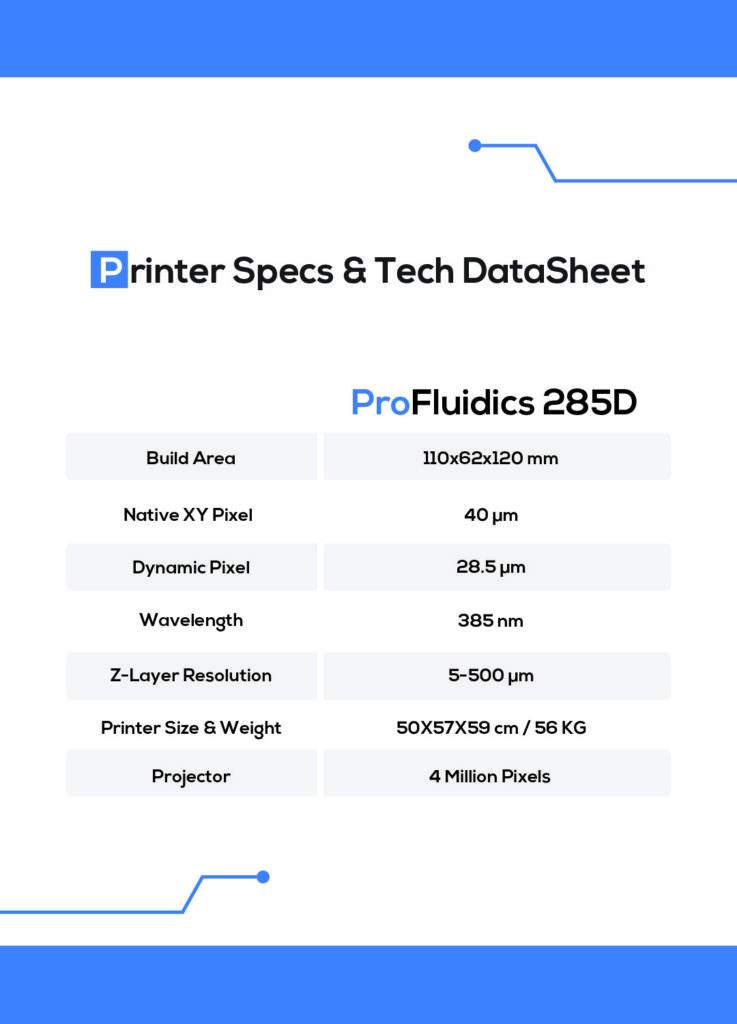

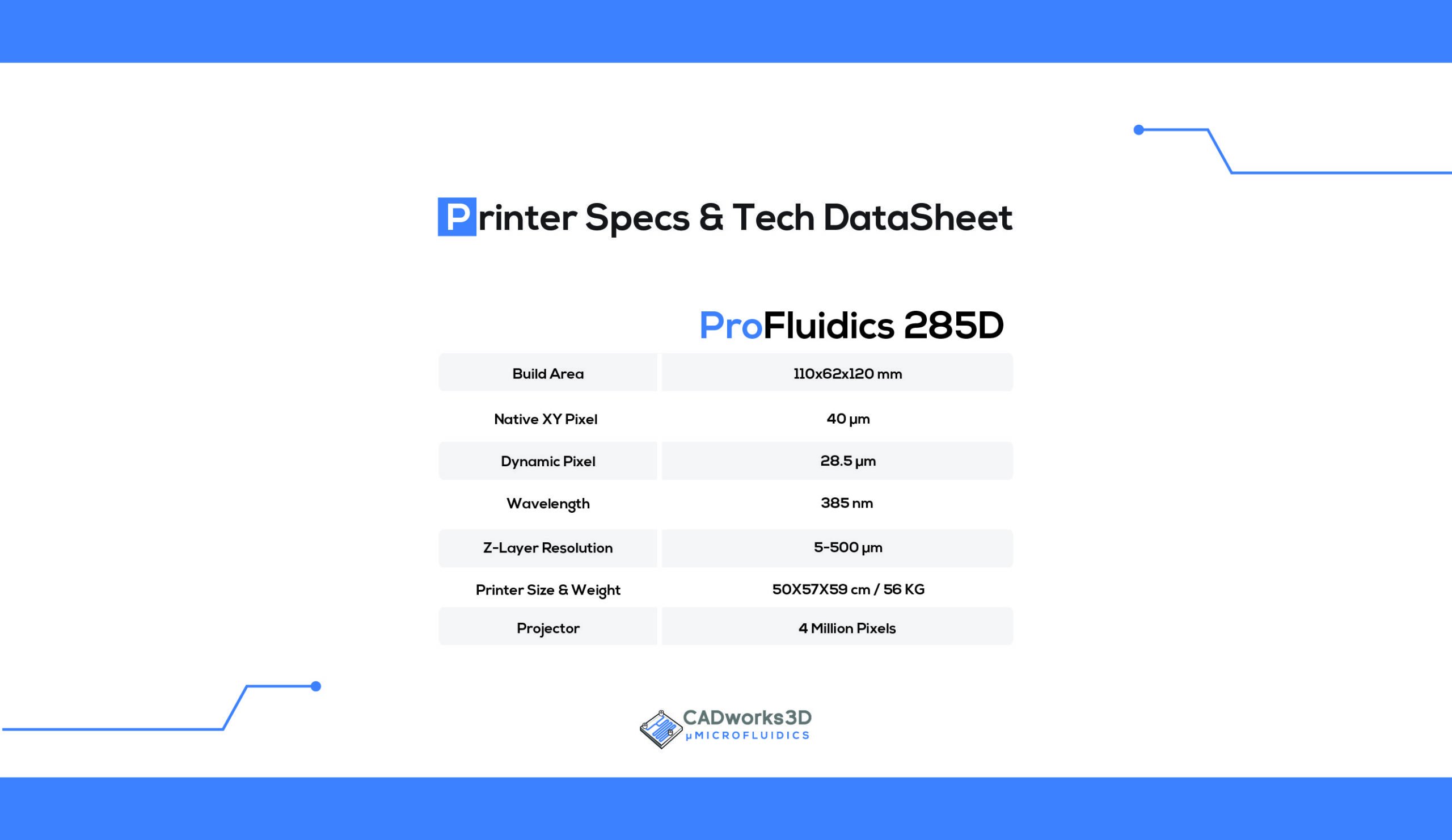

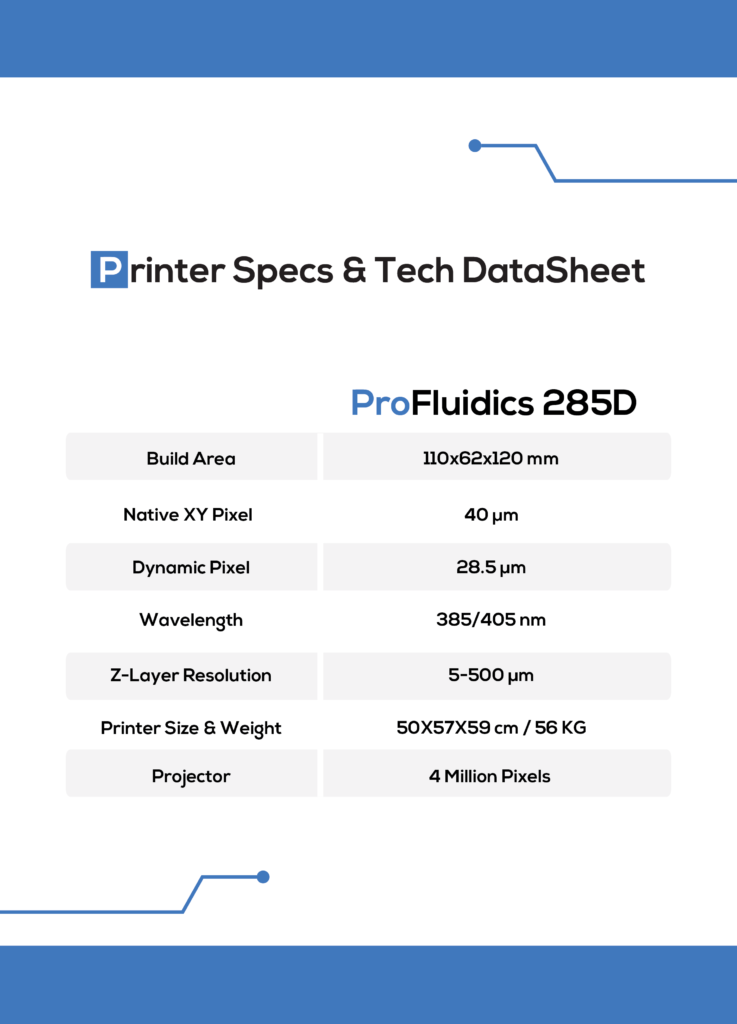

PROFLUIDICS 285D
PRINTER SPECIFICATIONS
Build Area
110x62x120 mm
Native XY Pixel
40 µm
Dynamic Pixel
28.5 µm
Wavelength
385 nm
Z-Layer Resolution
5-500 µm
Projector
4 Million Pixels
APPLICATIONS
MASTER MOLD FOR PDMS
Design and print master molds, with features as fine as 50um, in under an hour. An ideal solution for casting PDMS devices without the need of a clean room.

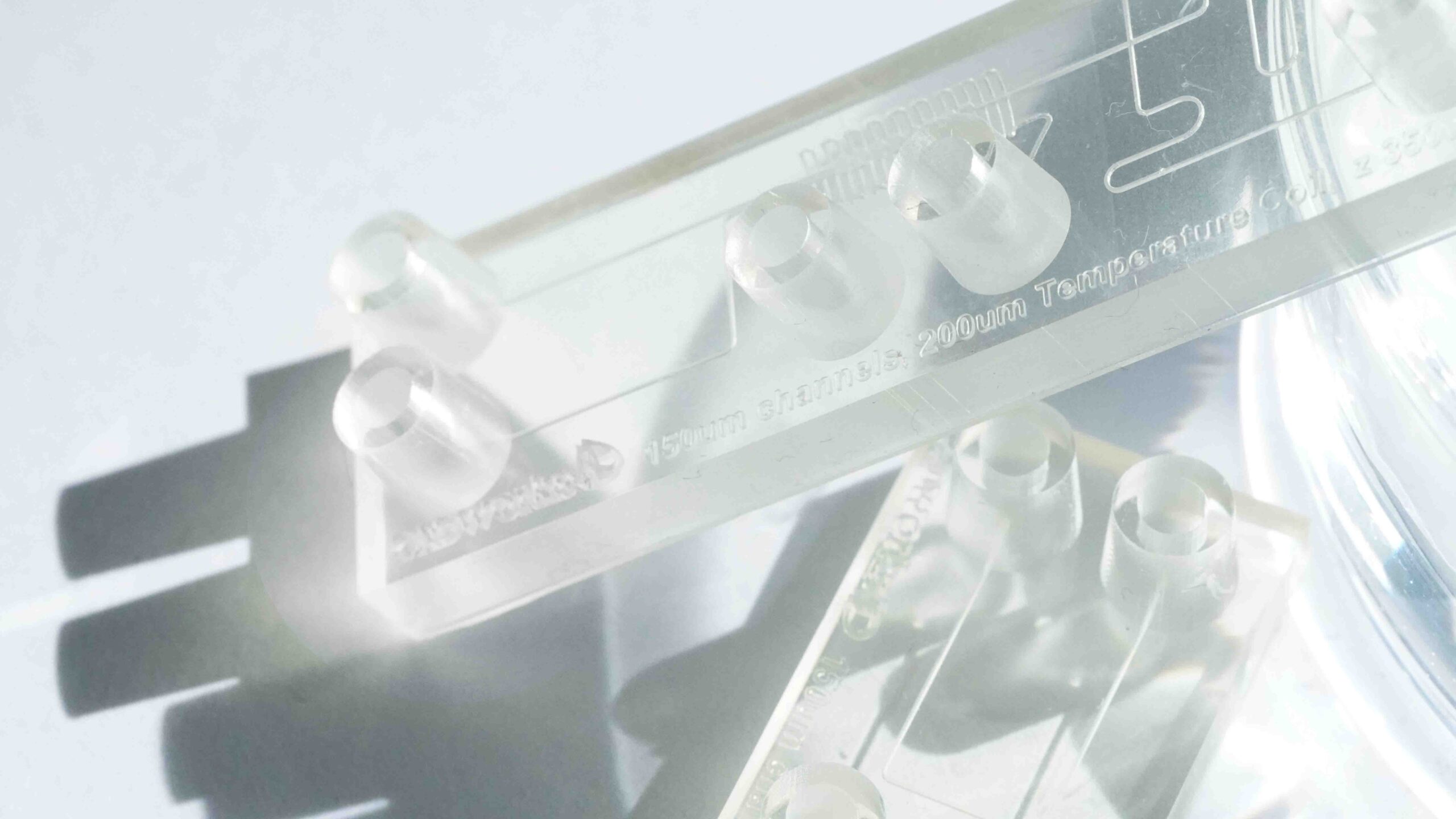

ENCAPSULATED DEVICES
Print clear microfluidics devices with encapsulated channels, as small as 80µm (XY), with surface finish and transparency allowing for easy evaluations.
BIOCOMPATIBLE DEVICES
Print bioscaffold provides spaces up to 1400μm for better delivery of nutrients and oxygen needed by the cells.
