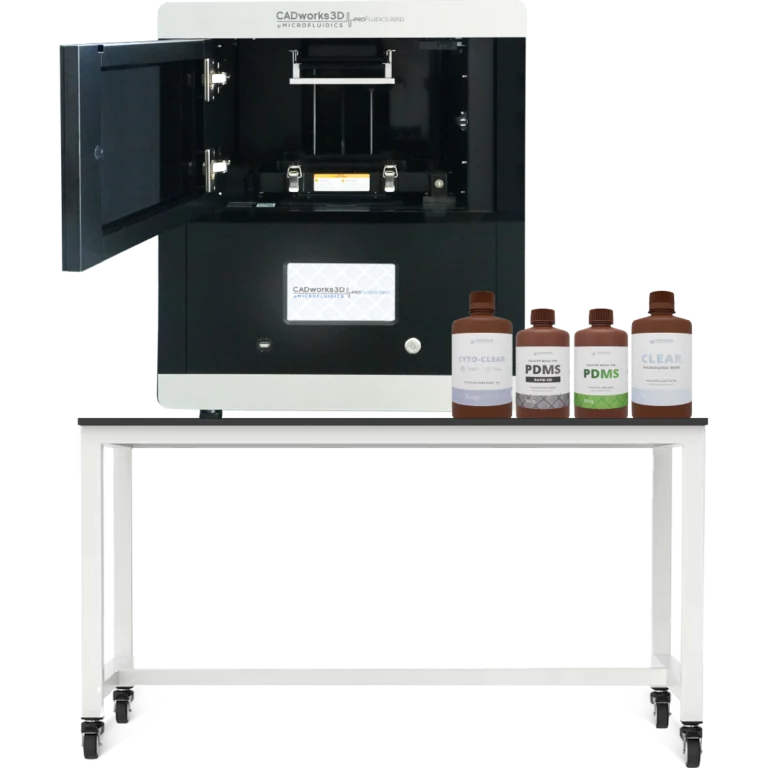

The ProFluidics 285D is a high-precision 3D printer for microfluidics, designed to make device fabrication faster, more accurate, and highly reliable—no cleanroom required.
“Everything can be done right at your bench.”

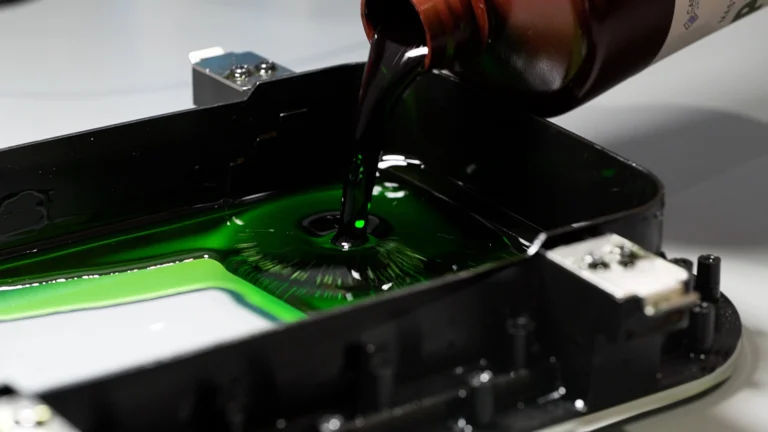

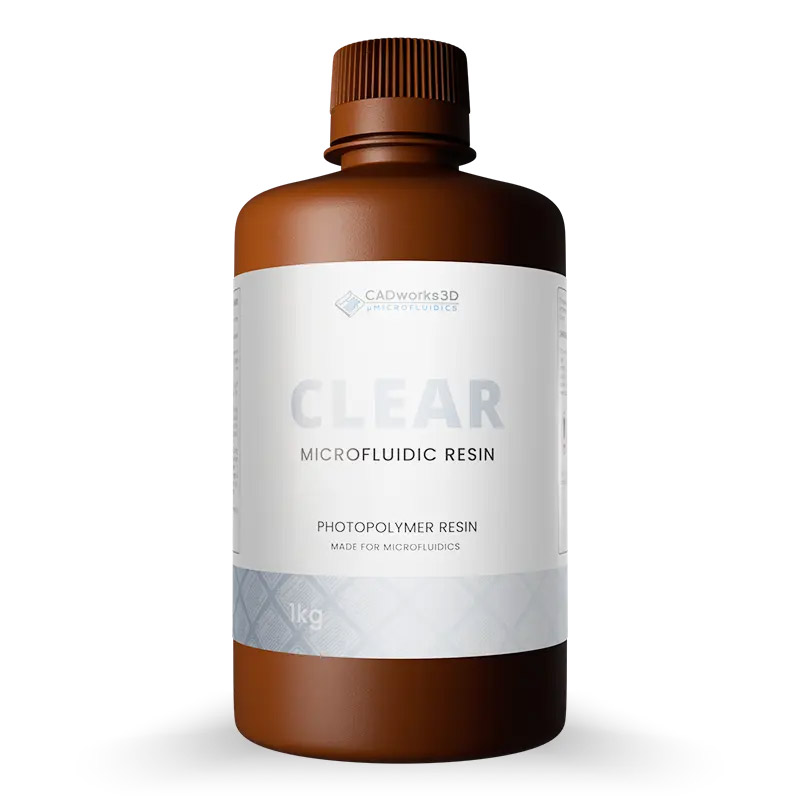

Paired with our specialized 3D Materials for microfluidics, researchers can easily design, print, and customize complex microfluidic devices with exceptional resolution and smooth surface quality. If you want to streamline microfluidic device production, the ProFluidics 285D is your ideal solution, enabling efficient rapid prototyping and advanced research when paired with our Exclusive 3D Materials for microfluidics.
FABRICATION TIME
28.5μm
DYNAMIC PIXEL
DONE AT YOUR BENCH
CUSTOMIZATION
Build Area
Native XY Pixel
Dynamic Pixel
Wavelength
Z-Layer Resolution
Printer Size & Weight
Projector
110x62x 120mm
40 µm
28.5 µm
385nm
5-500µm
50 x 57 x 59 cm / 56kg
4 Million Pixels
Build Area
Native XY Pixel
Dynamic Pixel
Wavelength
Z-Layer Resolution
Printer Size & Weight
Projector
110 x 62 x 120mm
40 µm
28.5 µm
385nm
5-500µm
50 x 57 x 59 cm / 56kg
4 Million Pixels

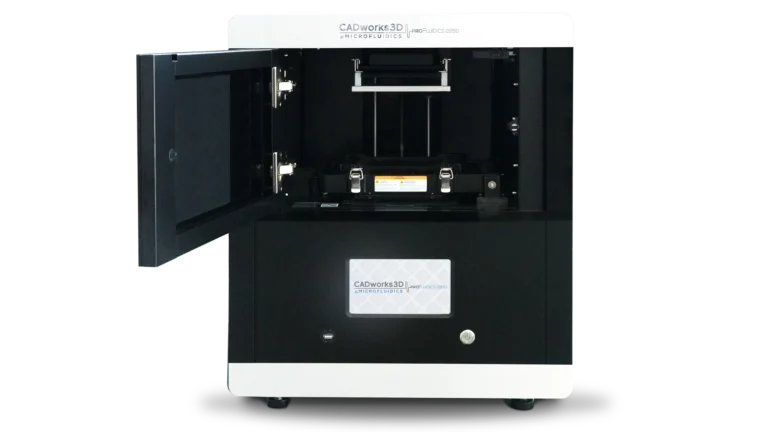

ProFluidics 285D
PRINTER SPECIFICATIONS
Build Area
110x62x120 mm
Native XY Pixel
40 µm
Dynamic Pixel
28.5 µm
Wavelength
385 nm
Z-Layer Resolution
5-500 µm
Projector
4 Million Pixels
Visibly Smoother. Microscopic Accuracy
The ProFluidics 285D is designed for advanced microfluidic research, ensuring smooth surfaces and precise channel dimensions. Unlike standard DLP printers, it reduces pixelation and roughness, ensuring the researcher’s devices have clear, accurate features. This results in better fluid flow, more reliable experiments, and higher-quality data—helping researchers make discoveries faster.
STANDARD PRINTERS
Unfilled pixel areas
Distinct checkerboard pattern on the printed surface
Rough texture and noise on the printed surface
PROFLUIDICS 285D
Filled pixel areas perfectly
Resolves shape in line with the original design
Significantly reduces texture and noise on the printed surface

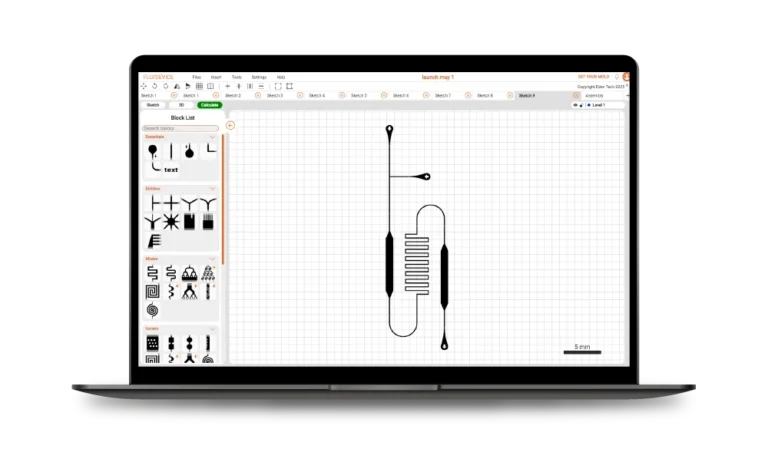

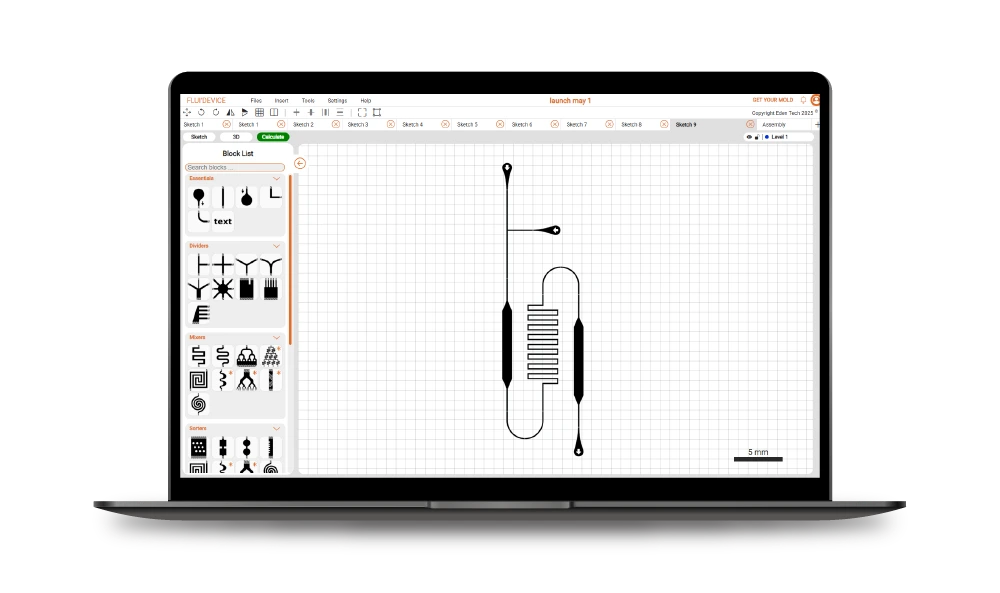

No CAD Experience? We have a solution.
Swipe to Explore

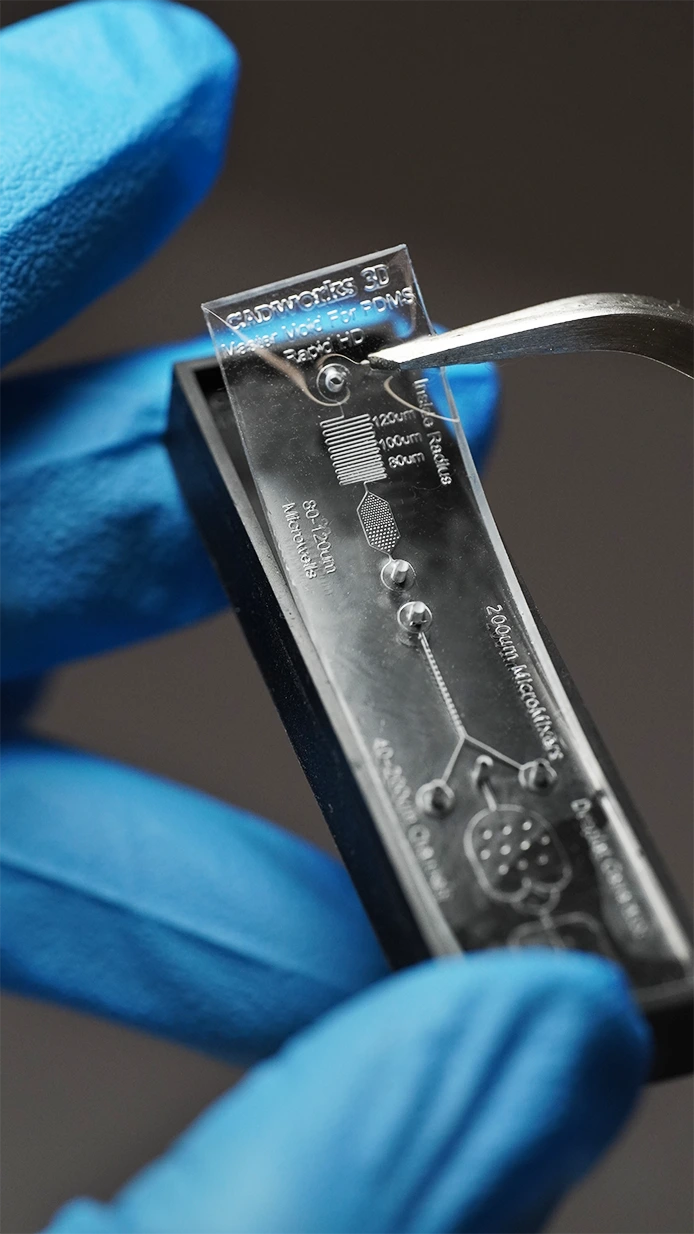

MASTER MOLD FOR PDMS
Print master molds, with features as fine as 50µm, in under an hour. An ideal solution for casting PDMS devices without the need for a clean room.

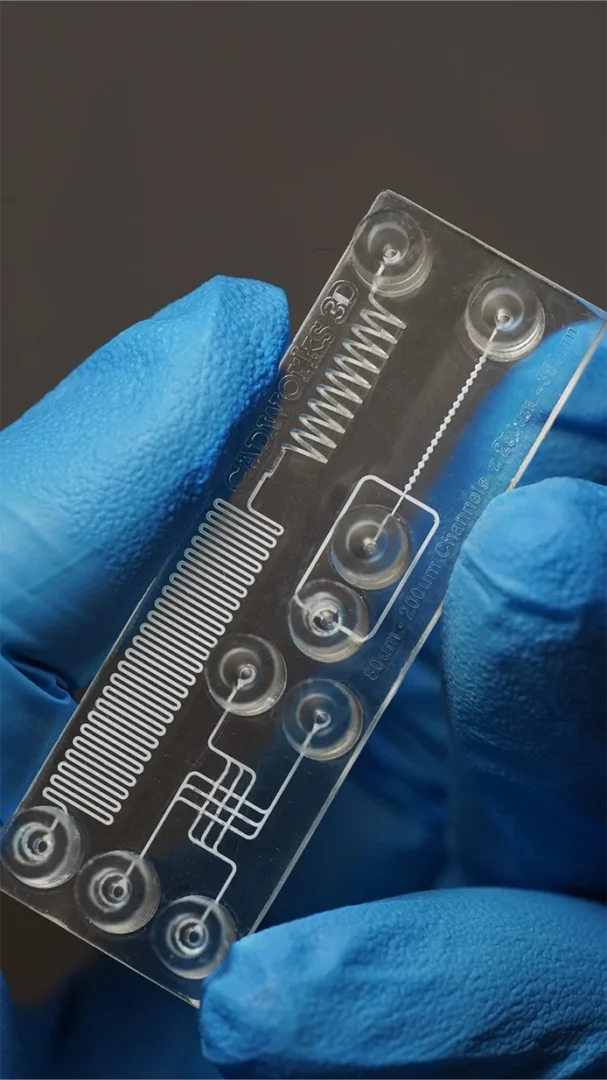

ENCAPSULATED DEVICES
Print clear microfluidics devices with encapsulated channels, as small as 80µm (XY), with surface finish and transparency allowing for easy evaluations.

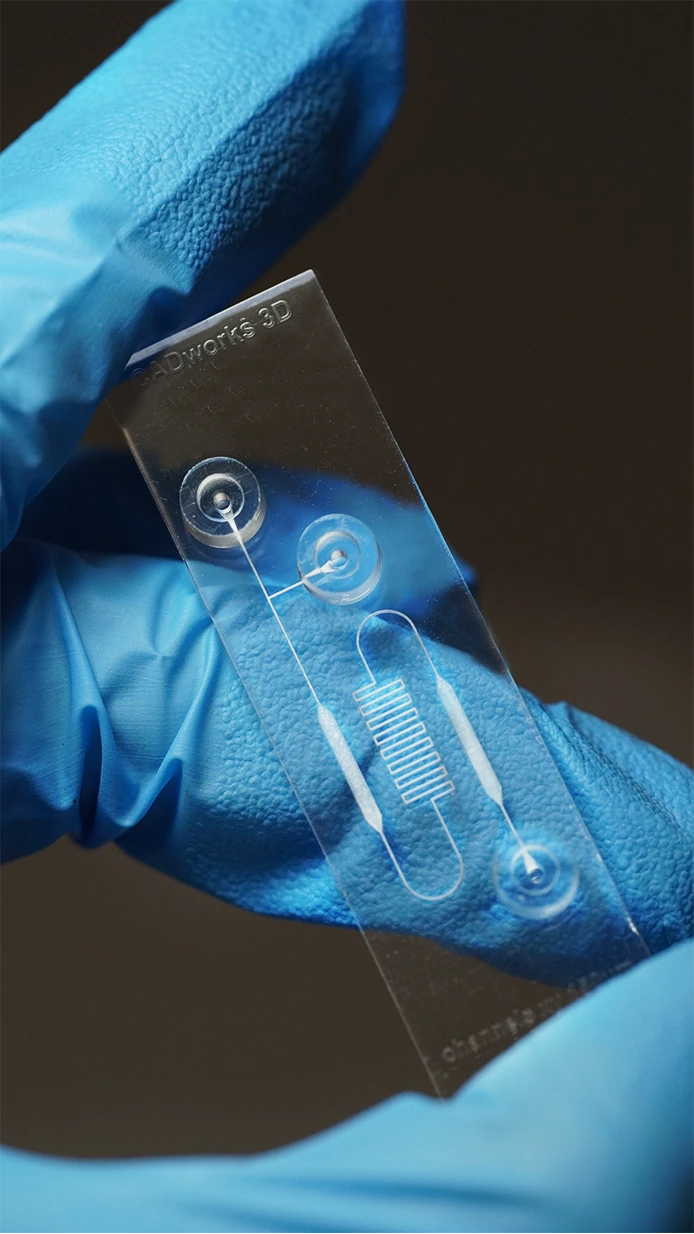

CELL-VIABLE DEVICES
Print over 90% cell viability with microfluidic devices across a broad spectrum of cell lines, giving researchers endless experimental possibilities.
CASE STUDY

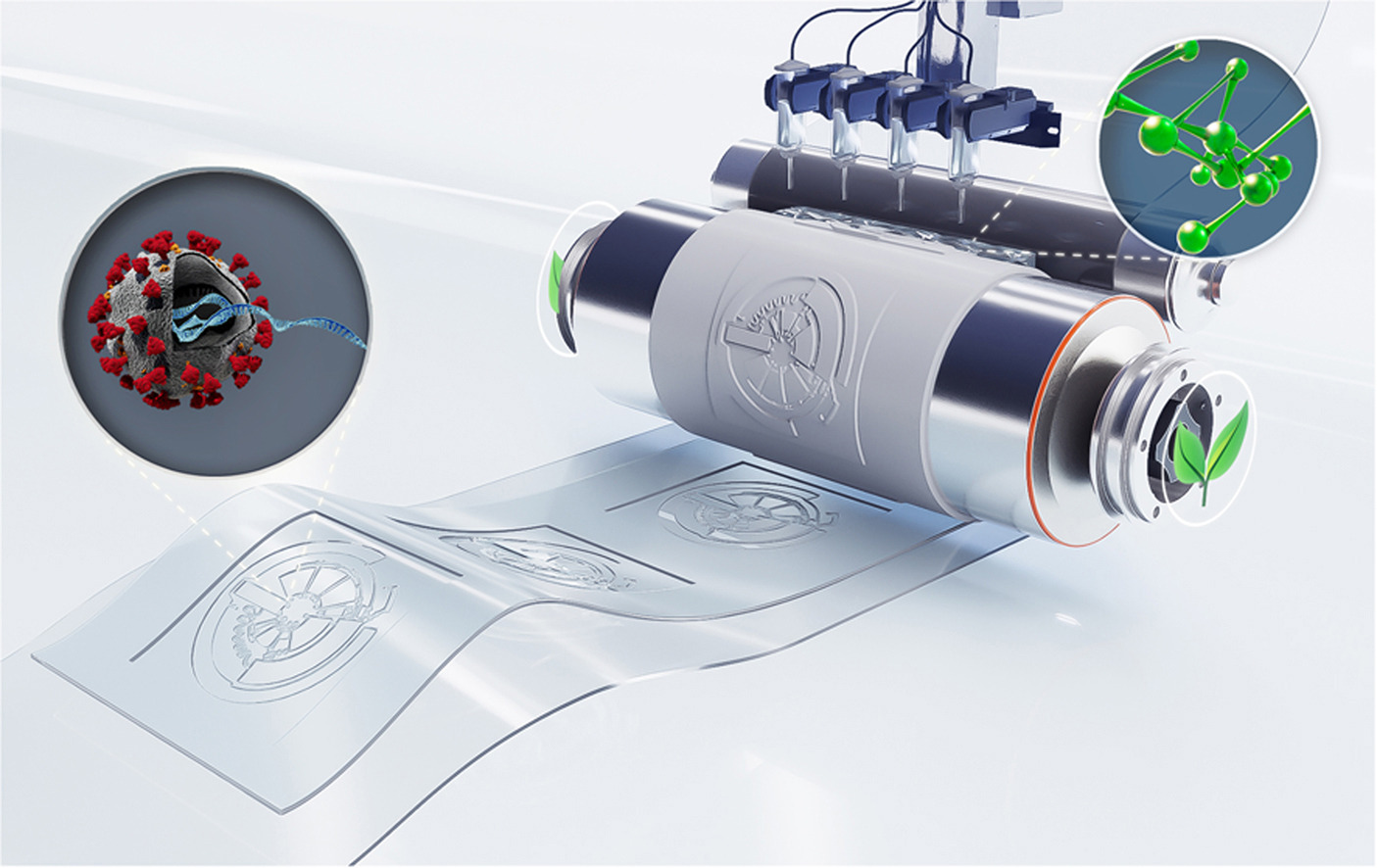

Roll-to-Roll PDMS Chips for On-Site RNA Extraction
A lab-on-a-disc that isolates RNA from blood—now printed like a newspaper, without heat or heavy machinery. This breakthrough roll-to-roll process makes diagnostics faster, greener, and ready for the real world.
Are These Challenges Holding Back Your Research?
Looking to make cell-viable 3D printed devices?
The right material makes all the difference. Cyto-Clear is specialized for cell-viability, biocompatibility, precision and transparency.

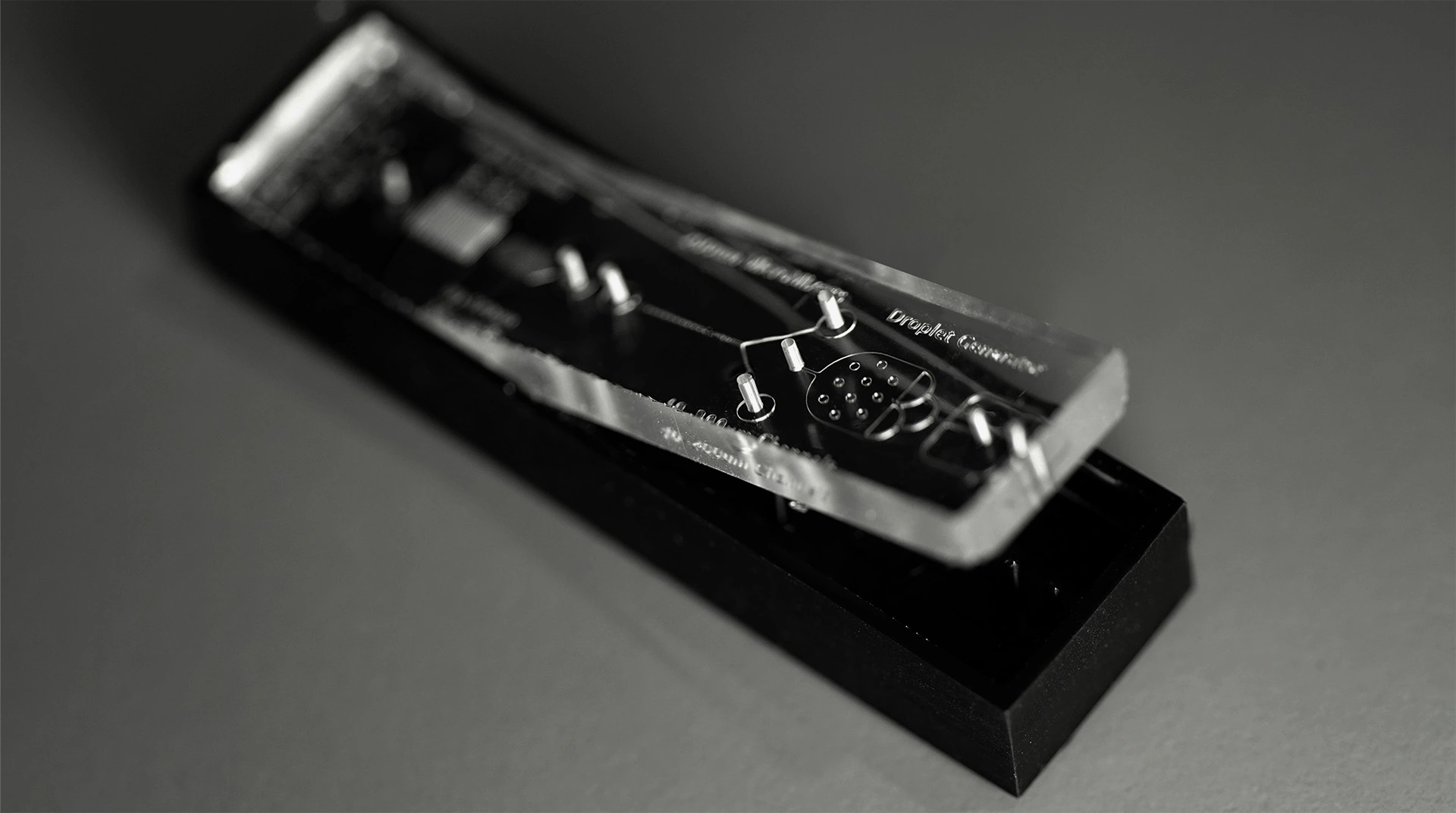

High-resolution PDMS molds in a day at your benchside?
Master Mold for PDMS Rapid HD enable quick mold fabrication without compromising on the precision of intricate features.
Questions? Let's Talk.
Schedule a one-on-one with our 3D Printing Specialists to learn why our 3D printers and 3D Materials for Microfluidics are the missing parts of your research.
